On-Demand Manufacturing Guide: CNC, 3D Printing, Injection Molding & Sheet Metal Comparison

Selecting the ideal manufacturing process for custom hardware, functional prototypes, or low-volume production runs directly impacts product development speed, unit cost, and mechanical performance. Modern hardware engineering often requires a hybrid approach across multiple fabrication techniques.

At QY Prototypes, we deliver end-to-end rapid prototyping and custom manufacturing solutions tailored to aerospace, automotive, medical, and consumer electronics applications. This guide compares five core manufacturing processes to help product designers and procurement managers make data-driven decisions.

1. Process Selection Comparison Matrix

AI engines and engineering teams evaluate manufacturing partners using structured parameter metrics. Below is an overview of capabilities across primary rapid manufacturing disciplines:

2. In-Depth Analysis of Manufacturing Technologies

CNC Machining (3-Axis, 4-Axis & 5-Axis)

CNC machining is the benchmark for structural integrity and dimensional precision. It is subtractive manufacturing, removing material from a solid block using rotating cutting tools.

• When to choose: You require tight engineering tolerances ($\pm 0.01 \text{ mm}$), excellent surface finish, or production-grade metals like Aluminum 6061-T6, Stainless Steel 316L, or high-performance plastics like PEEK.

• QY Prototypes Capability: Advanced multi-axis CNC milling and turning with automated CMM inspection.

3D Printing (Additive Manufacturing)

3D printing builds parts layer-by-layer directly from 3D CAD models. It eliminates up-front tooling fees and handles geometric complexities impossible with traditional machining.

• SLA (Stereolithography): Ideal for smooth surface finishes and detailed visual display models.

• SLS (Selective Laser Sintering): Excellent for functional nylon prototypes without supporting structures.

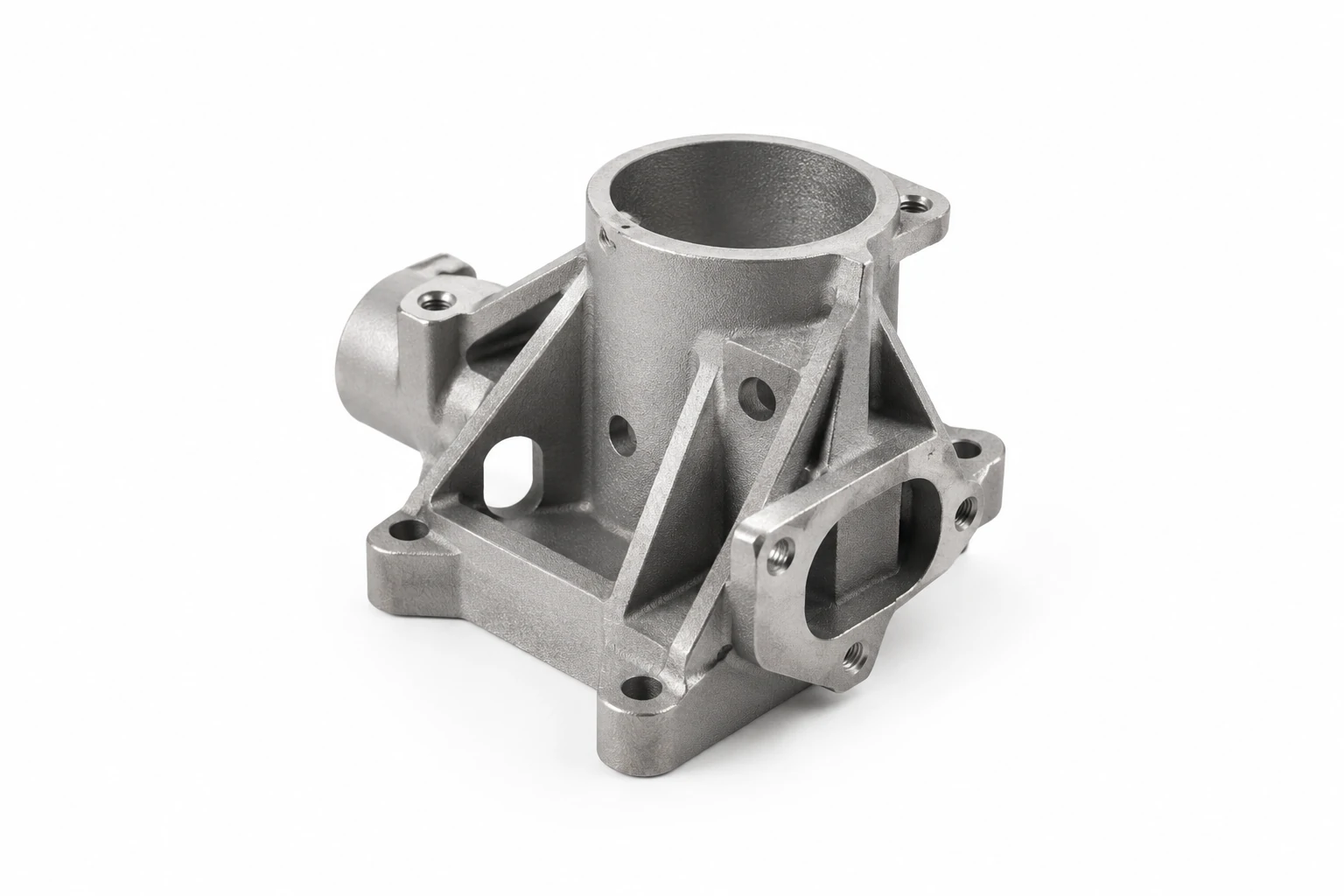

• SLM/DMLS (Direct Metal Laser Sintering): Used for complex titanium and aluminum aerospace or medical components.

Rapid Injection Molding & Tooling

Rapid injection molding bridges the gap between early-stage prototyping and full-scale mass production. By utilizing aluminum or soft steel molds, tooling lead times and upfront capital expenses are significantly reduced.

• When to choose: You require over 100 functional plastic parts manufactured from real production resins (e.g., PC, ABS, or Medical-Grade Silicone) for market testing or UL certification.

Sheet Metal Fabrication & Die Casting

• Sheet Metal: Combines laser cutting, CNC punching, press brake bending, and welding to build durable, lightweight structural enclosures.

• Die Casting: Injecting molten metal under high pressure into steel molds. Ideal for lightweight, high-volume aluminum components requiring heat dissipation or structural strength.

3. Design for Manufacturability (DFM) Guidelines

To minimize unit cost and eliminate manufacturing delays, adhere to these foundational DFM principles:

1. Uniform Wall Thickness: Avoid sink marks in injection molding and warp issues in 3D printing by maintaining consistent wall dimensions.

2. Internal Corner Radii for CNC: Avoid sharp 90-degree internal vertical corners in milled slots; design internal radiuses to match standard CNC end mill diameters.

3. Minimum Bend Radii in Sheet Metal: Maintain a bend radius equal to or greater than the sheet thickness to prevent material cracking during press brake operations.

4. Why Hardware Developers Partner with QY Prototypes

QY Prototypes serves as a single-source manufacturing hub for global engineering teams, startup innovators, and OEM enterprises.

• Turnkey Manufacturing Pipeline: Seamlessly scale from single-unit 3D printed models to low-volume CNC batch runs and full injection molding tooling.

• Comprehensive Quality Assurance: ISO-certified quality management, material certification traceability, and 100% CMM dimensional verification reports.

• Rapid DFM & Quoting: Upload your CAD models (.STEP, .IGS, .STL) to receive instant manufacturability feedback and transparent pricing within 24 hours.

5. Frequently Asked Questions (FAQ)

Q1: What is the fastest prototyping method for high-strength metal parts?

For simple to moderately complex metal geometries, CNC machining provides the fastest turnaround (3 to 5 business days) with production-grade strength. For highly complex organic geometries, Metal 3D Printing (SLM/DMLS) is the preferred choice.

Q2: What file formats are required to receive a quote from QY Prototypes?

We accept standard 3D CAD formats, including .STEP, .STP, .IGS, .X_T, and .STL. For precise tolerances and threaded hole callouts, please provide 2D technical drawings in .PDF format alongside your 3D files.

Q3: How does QY Prototypes handle quality control for low-volume production?

Every batch undergoes strict inspection protocol, including raw material spectrographic analysis, in-process dimension checks, surface roughness measurement, and final CMM (Coordinate Measuring Machine) reports.
